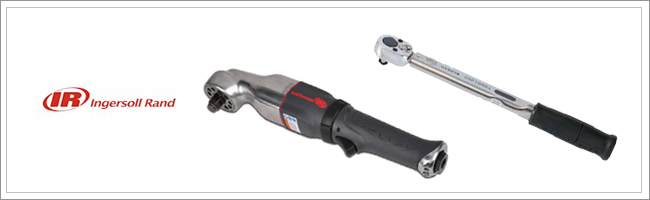

Tohnichi Torque Wrenches / Testers

QL/QLE:
Ratchet Head Type Adjustable Torque Wrench

"Ingersoll Rand represents in India, Tohnichi of Japan for their entensive range of torque auditing equipemnt. This includes a large range of click and dial type torque wrenches including wrenches fitted with special heads and attachments".

Specifications:

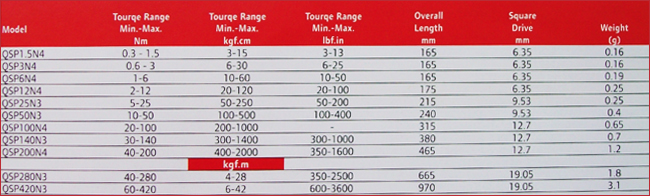

QSP:

Ratchet Head Preset Torque Wrench

No external scale, Torque value set using key & tester
Ideal for mass production application

torque-wrenches-spec2

DB/DBE/DBR:

Dial Indicating Torque Wrench

Memory pointer for easy torque reading
Ideal for torque measuring and quality check application

Model	Torque Range		Metric Model	Torque Range		American Model	Torque Range		Overall Length mm	Square Drive mm	Weight (g)
Model	Min.-Max Nm	Grade Nm	Metric Model	Min.-Max kgf.cm	Grade kgf.cm	American Model	Min.-Max kgf.cm	Grade kgf.cm	Overall Length mm	Square Drive mm	Weight (g)
DB1.5NA4-S	0.2-1.5	0.02	15DB4-S	2-15	0.2	DB131-2AS	0-13	0.2	205	6.35	0.4
DB3N4-S	0.3-3	0.05	30DB4-S	3-30	0.5	DB261-2AS	0-26	0.5	205	6.35	0.4
DB6N4-S	0.6-6	0.1	60DB4-S	6-60	1	DB401-2AS	0-40	0.5	205	6.35	0.4
DB12N4-S	1.12	0.2	120DB4-S	10-120	2	DB751-2AS	0-75	1	205	6.35	0.4
DB25N-S	3-25	0.5	230DB3-S	30-250	5	DB1501-3AS	0-150	2	245	9.5	0.6
DB50N-S	5-50	0.5	450DB3-S	50-500	5	DB3001-3AS	0-300	5	320	9.5	0.6
	-	-	-	-	-	DB6001-3AS	0-600	10	400	9.5	0.6
DB100N-S	10-100	1	900DB3-S	100-1000	10	DB6001-4AS	0-600	10	400	12.5	0.7
	-	-	-	-	-	-	lbf-ft	lbf-ft
	-	-	-	-	-	DB25F-3AS	0-25	0.5	320	9.5	0.6
	-	-	-	-	-	DB50F-3AS	0-50	0.5	400	9.5	0.7
	-	-	-	-	-	DB50F-4AS	0-50	0.5	400	12.7	1.0
DB200N-S	20-200	2	1800DB3-S	200-2000	20	DB100F-4AS	0-100	1	500	12.7	1.0
