air-compressor

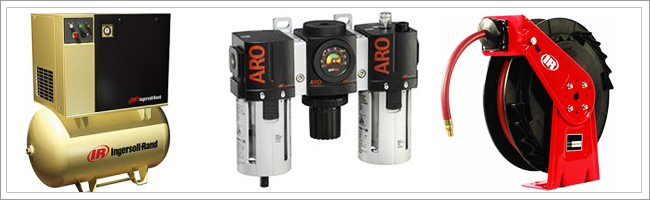

Rotary Screw Air Compressor

Low Sound Levels - Allows installation close to point of Use
Advanced Cooling - High efficiency, oversized cooler
Dual control operation -Provides flexibility to choose control of operation according to requirements
Simple diagnostics - Visual indication of operating status
Generous serviceability - Spacious design for ease of serviceablility hot box cool box design - Exclusive design ensures extended life and reliability

Specifications:

Model	Power		Pressure		Air Receiver M³ (lit.)
Model	HP	KW	psig	barg	cfm	m³ / min.
IN 7-7	7	5.5	102	7	27.5	0.78
IN 7-8	7	5.5	116	8	26.0	0.74
IN 7-10	7	5.5	145	10	23.6	0.67
IN 10-7	10	7.5	102	7	37.4	1.06
IN 10-8	10	7.5	116	8	35.3	1.00
IN 10-10	10	7.5	145	10	30.0	0.85
IN 15-7	15	11	102	7	54.4	1.54
IN 15-8	15	11	116	8	51.2	1.45
IN 15-10	15	11	145	10	44.1	0.25

Accessories:

Ingersoll Rand offers a complete range of accessories to ensure optimum utilisation of its products. A completed range of airlline accessories connect tools to the airline. Air line accessories include coiled hoses and connectors. Balancers and suspension arms used for suspending tools are also provided.

Filters, Regulators and Lubricators (FRLs) supply clean, dry and lubricated air and increase durability of the tool. Complete range of impact sockets, bits (philips, slotted, allen, terx etc.,) are available.

Hose Reels:

Model:	Description	Length of hose
HRB-5	Hose reel for compressed air	4.5 Meter
HRB-10	Hose reel for compressed air	10 Meter
ORB-10	Hose reel for Engine oil / Transmission oil	10 Meter
GHR-10	Hose reel for grease	10 Meter

Filter Regulator & Lubricator:

Model:	Description	Part Size	Pressure Range	Filter Element
P29122-600	ARO Module / Air 1000 Series Piggyback Filter / Regulators	1/4"	5-125 PSG	20 micron
L26121-100		1/4"	-	-
